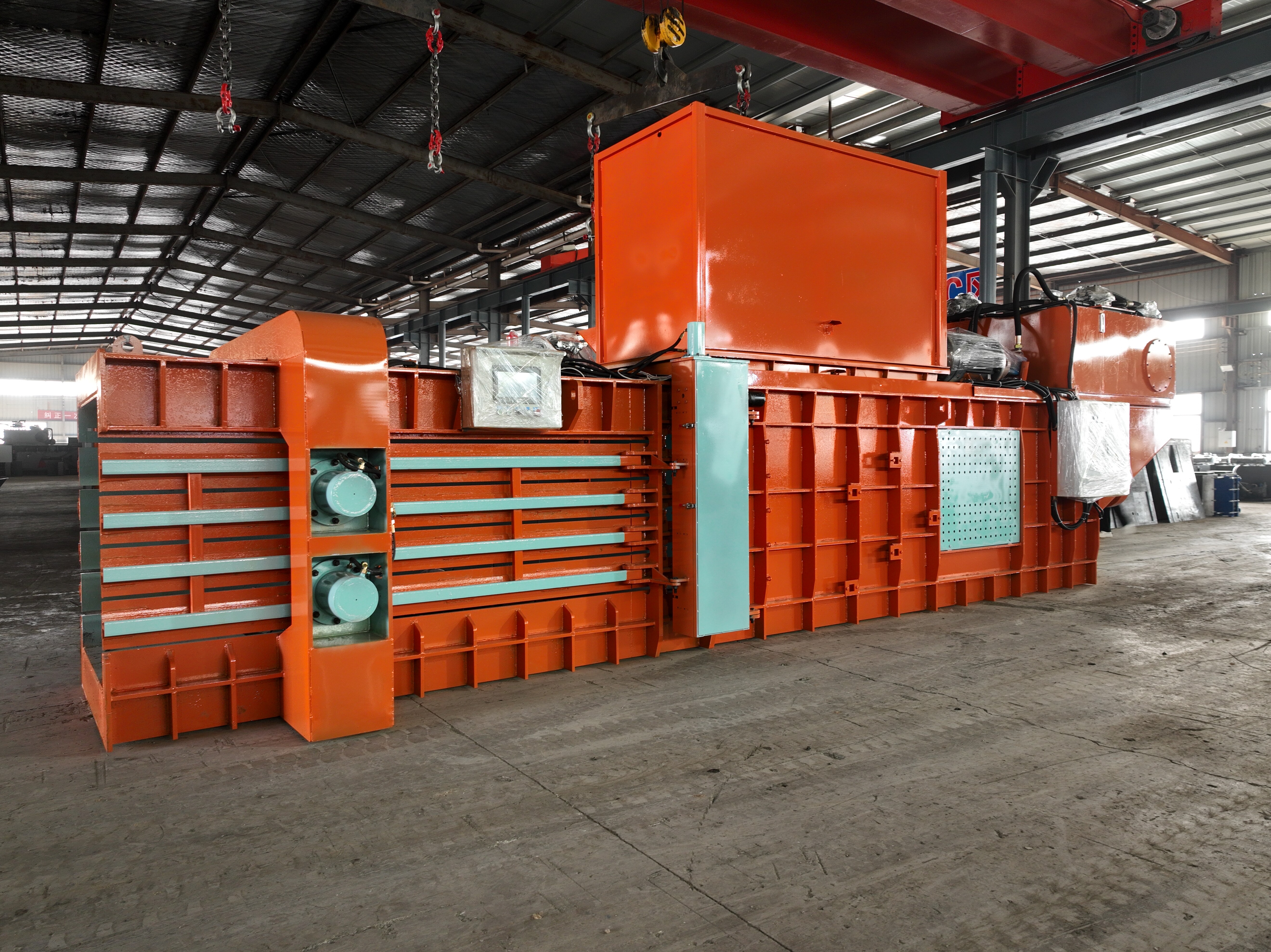

HN-125T-QZD horizontal hydraulic baler

Machine model: HN-125T-QZD horizontal hydraulic baler
Bale size: （500-2500）*1100*1250mm
machine overall dimension: 9600*2300*3600mm

Product Details

Machine model	HN-125T-QZD large bale horizontal hydraulic baler
Bale size	（500-2500）11001250mm
machine overall dimension	960023003600mm
material inlet size	2000mm
Automation level	Automatic packaging, automatic threading, and automatic tying of ropes
main hydro-cylinder size	300mm*2800mm
electrical machinery	37kw
main oil pump	HY160 variable piston pump+ 3507 vane pump
Auxiliary oil pump	PV2R32-153/31
valve body	Cartridge valve
electrical brand	Schneider
cycle time	25 second
operating system	PLC
Transformer system	LRS -75/350-24
Bearing	6211RZ /6206RZ
Unloader	NJ K7D2
condenser	OR1000（copper core ）
weight of the whole machine	15.5 T
46#anti-wear hydraulic oil required	2000 liters
compression weight	waste cardboard boxes about 1000-1200 KGS
